CORTIZO COR
VISION PLUS

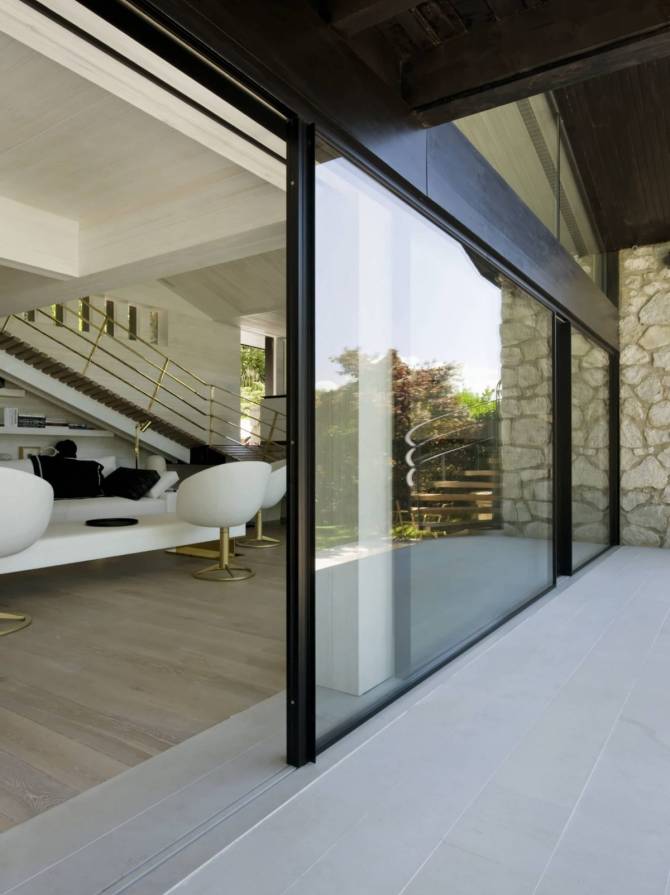

The Cortizo Cor Vision Plus Aluminium Sliding doors can hold glass panels of 36mm to 56mm in thickness. This enables the use of either double or triple glazing, resulting in superior thermal and acoustic insulation.

Indeed, the sleek Cortizo COR Vision Plus patio doors sliding doors boast a slim 25mm sightline and are offered in three standard color choices: RAL White 9016, RAL Anthracite Grey 7016, and RAL Black 9005. For those looking to add a personal touch, an extensive range of over 200 RAL colors is also available at an additional cost. This allows for ample customization options to suit your preferences.

When it comes to construction in today’s world, energy efficiency is paramount. Thankfully, the Cortizo Cor Vision Plus glass sliding door system lives up to expectations. With a U value of UW ≥ 0.9 (W/m2K), it stands out as one of the most thermally efficient options available. From double or even triple glazing to the ability to handle glass panes up to 56 mm thick, this system guarantees superior acoustic and thermal features, maintaining a comfortable space with reduced noise and optimal thermal efficiency throughout the year.

Security is a top priority for property owners, and the Cortizo Cor Vision Plus system has several key features to address this concern, including:

• • Internal/External Key Locking: Can be operated from both inside and outside for enhanced security.
  • Concealed Frame: Provides a sleek appearance while also increasing resistance to break-ins.
  • Advanced Security: With a 5-point locking system, our product offers enhanced security measures for your property.

Yes, The Cortizo Cor Vision Plus sliding door is specifically engineered to withstand harsh weather conditions. It has been certified to meet the rigorous requirements for Air Permeability Class 4, wind resistance (Class C3* / C4**) and water tightness (Class 7A* / 9A**). Therefore, it can endure heavy rain and strong winds without compromising its structural integrity or allowing water infiltration.

Indeed. The Cortizo Cor Vision Plus sliding door system boasts a sleek 25mm sightline and can be fully customized to meet your exact needs. Regardless of whether you require a standard door sizes or a personalized option for an unconventional area, the system is adaptable to any space. This encompasses the desired number of sashes, configuration, color choice, and glass selection.

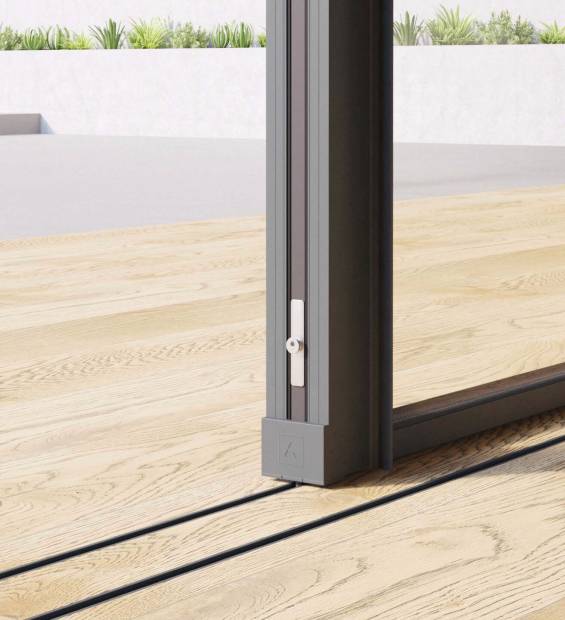

The innovative Cortizo Cor Vision Plus sliding door system prioritizes accessibility. By embedding the bottom track into the floor, the need for thresholds is eliminated, creating a seamless entry for wheelchair users and removing any potential trip hazards. Additionally, the high-performance rollers ensure effortless operation and a smooth gliding experience when opening and closing the doors.

For those seeking modern convenience, the Cortizo Cor Vision Plus sliding door system offers an automatic drive with remote-control capabilities. The COR Vision patio door has a high weight limit of 400kg per panel for manual operation and up to 700kg for the motorized option. This allows for effortless operation via remote control or smartphone, adding a touch of luxury and ease.

With the COR Vision Plus system, enjoy a peaceful indoor setting thanks to its acoustic insulation RW of up to 43 dB. This aluminium sliding door from Cortizo also boasts a glazing capacity that accommodates 36mm to 56mm for double and triple glazed options, enhancing both thermal and acoustic insulation.

The impressive maximum moving sash size is 4000 mm in both width and height, providing great design and installation flexibility. When it comes to weight, the doors can hold up to 400 kg per pane manually or 700 kg motorized. However, users will still experience smooth and effortless movement, despite the weight.

The system boasts high-performance runners and multi point locking mechanisms, with the added convenience of internal/external key locking options. This ensures optimum security for your home or building.

Indeed, the distinctive engineering elements of sliding windows allow for their discreet integration into custom wall cavities, allowing for optimal light transmission without compromising the sleek appearance of the window sash. Additionally, these versatile patio doors can be utilized as a corner installation, seamlessly sliding into the adjacent wall or cleverly concealing the frame within the structure for an even more minimalistic and nearly frameless aesthetic.

The Cor Vision Plus sliding Doors feature an aluminium threshold with integrated drainage and a stainless-steel system. This effectively prevents rainwater from entering the building interior. For Cortizo COR Vision sliding doors, the track is placed below the flush top to reduce maintenance needs and minimize the risk of water penetration. Proper machining of the drainage is crucial to prevent any blockages or overflows.

Estimate Lead time:

• For all our projects in standard colours is 6-8 weeks
• For Final Survey is within 5 Days
• Framework: 4-5 working days for the framework
• Glass: 7 working days for Glass Delivery

Express Service:

If you need your products quicker, please contact us to find out about our express service charges. All the premium service orders need to be before 10am weekdays for 1-7 working days delivery.

please contact us to get the accurate lead time by our representative.

At Austral Glazing Ltd, we are proud to be your official Cortizo & SMART Fabricator and experts in high-end projects. We are in Thornton Heath and specialize in producing and installing top-of-the-line aluminium architectural glazing products. Our focus is satisfying the demands of luxury and modern projects.

At our company, we recognize the significance of fulfilling the requirements of contemporary architectural plans, particularly in panoramic glazing ventures. Our teams possess the proficiency to achieve visually striking outcomes.

As authorized dealers, suppliers, fabricators, and installers of the full range of Cortizo & SMART products, we have the capacity to handle all your glazing needs, not just in Thornton Heath London but throughout the UK.

Here’s a quick overview of our product range of Cortizo & SMART aluminium products:

• Cortizo COR Vision Plus Sliding Doors
• Cortizo COR Vision Sliding/Patio Doors
• Cortizo Aluminium Bifold Doors
• Cortizo Casement Aluminium Windows
• SMARTS VISOFOLD 6000 Aluminium Bi-Folding Doors
• SMARTS VISOFOLD 1000 Slimline Bifold Doors
• SMART Aluminium Alitherm 400 Windows
• SMART Heritage style Windows and Doors
• SMART ALUSPACE Internal Doors & Screens

Count on our expertise to provide top-notch glazing and door solutions that guarantee both your comfort and security, while also promoting energy efficiency. Our services extend not only to Thornon Heath London, but throughout the entire UK.
